Suspensionclub

For Honda Civic 1988-1991 Twin-Tube Damper Adjustable Coilover Suspension Kits

$238.00
4 sold
Qty 138 in stock

Applicable models
Compatible for Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
Compatible for Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
(ED8\ED9\EE6\EE8\EF6\EF7\EF8)
Compatible for Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
Compatible for Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only
Compatible for Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
Compatible for Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
Compatible for Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model onlyds strut diameter at the front axle of 55 mm 01/88 - 12/95

Product Details
Front and Rear top mount: rubber
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold body with black spring

Package included

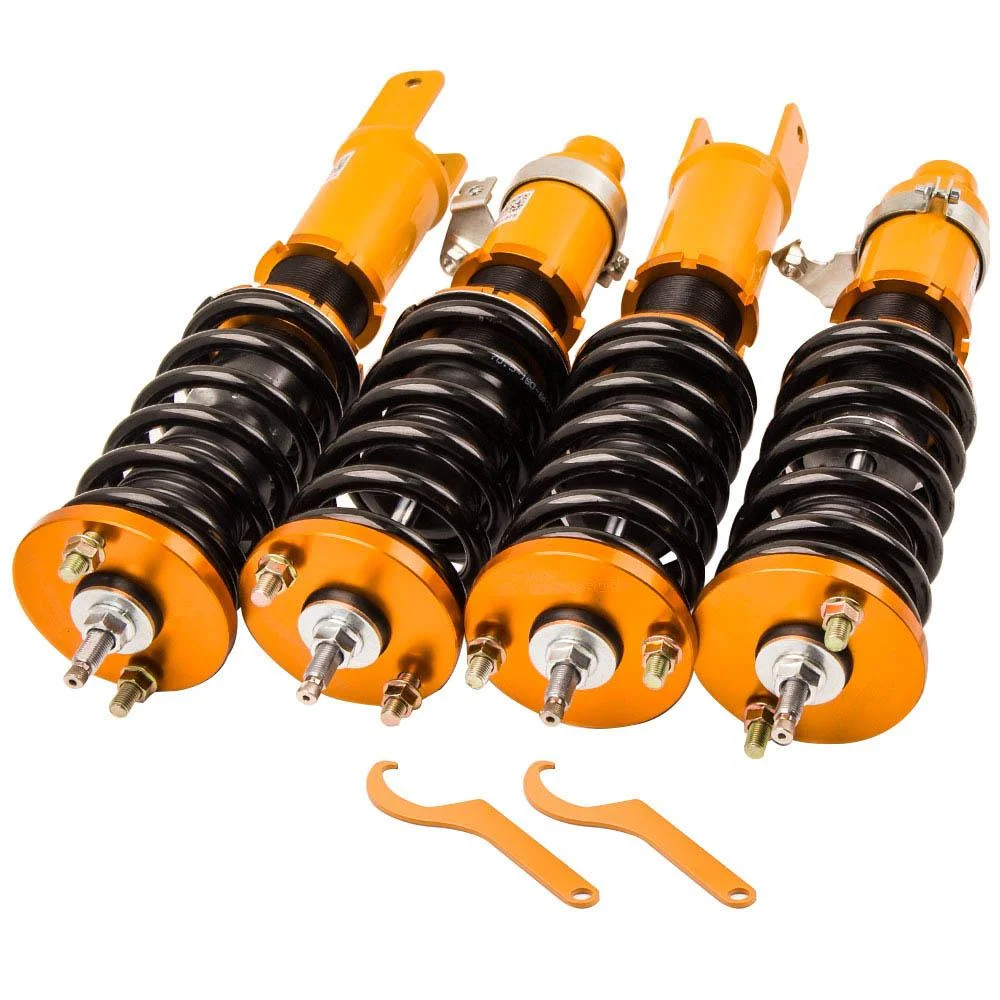

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment

Dimension
Package dimension : 71*51*21
Weight: 22260g

Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4. Twin-Tube structure allows sufficient stroke within the shock absorber.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
11. Steel shock bodies with special surface treatment to improve the durability.
12. Full rebuildable.

Notice
For some vehicles, you will need sleeves and washers that already included in our package.

Suspensionclub currently provides a one (1) year warranty from the purchase date on all Suspensionclub products.

What is not covered under warranty?

  • Misuse, lack of care, mishandling, accidents, abuse or other abnormal use
  • Damage due to improper/unauthorized repairs, modified or altered product
  • Non-Suspensionclub products (counterfeits)
  • Damage to devices while using Suspensionclub products
  • Wear and tear items such as bearings, bushings, gaskets and ball joints.

What does the warranty cover?

  • Products that have a manufactures defect.

Limitations

Suspensionclub will not be liable for any indirect, incidental, or punitive damages arising from the use of any Suspensionclub product. The Suspensionclub Limited Warranty does not, in any situation, cover the repair or replacement of property, including but not limited to, electronic devices and/or other personal property.

  • No instruction included
  • Professional installation & alignment suggested
  • Height adjustable on the front and rear axles (threaded strut housings)
  • Without homologation certificate
  • Easy installation with the right tools
  • If you have any questions, please free to contact us for whatever we can help with.
