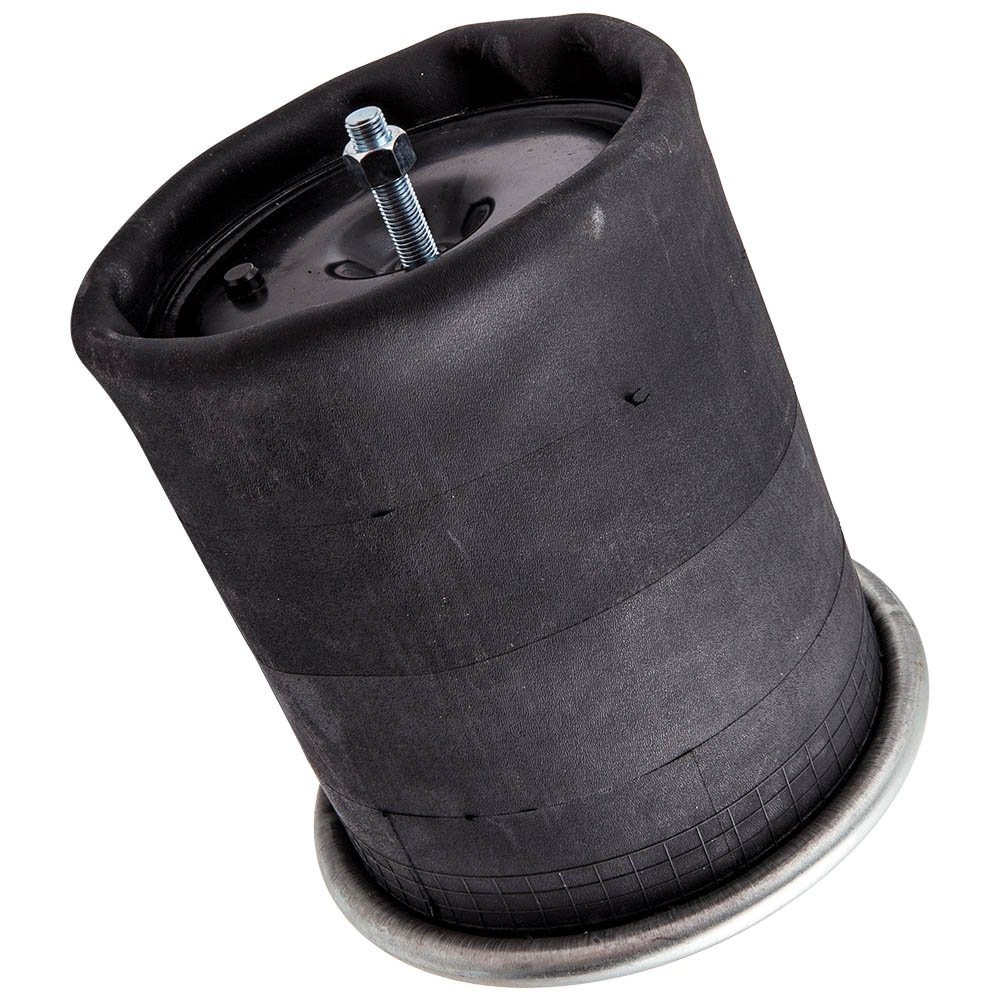

Air Suspension Spring Bag Compatible for Firestone W01-095-0500 Compatible for Contitech Truck 1T19L14

Reference Part Number:

For Firestone: W01-095-0500, W01 095 0366, 1T19F-14, 1T19L1

For ContiTech: 4913 N P02, 4913NP02

For Goodyear: 1R14-753, 1R14753, D14753

Compatible for Airtech: 34913K

For Cf Gomma: 206201, 1T19E93

For Contitech: 4913NP02

For Dunlop: 00937AAP

For Fa1: C282H, 2821600, V1D28H16 ,14913K

For Phoenix: 1D28H16

For Meritor: MLF7081

For Scania: 1440294, 1379392, 1379393

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.5

Distance Between Two Stud :144 mm

Gas Hole / Air inlet : M16X1.5.

Distance Between Air inlet and Stud: 177 mm and 33 mm

Top Cover Plate Diameter: ?286 mm

Rubber Bellows Natural Diameter: 330 mm

Rubber Bellows MAX Height : 797 mm

Rubber Bellows MIN Height :235 mm

Working stroke : 562 mm

Without Bumper Block

Bottom Piston Diameter : ?230 mm

Bottom Piston Height :210 mm

Piston Bolt Tooth : M16X2.0 and ?16

Distance Between Two Bolt : 70 mm

Size: 42*30*28CM

Weight: 1.386KG

Condition: 100% Brand New

Quantity: 1 Piece (Compatible for Left, Right, Front, Rear)

Warranty: 1 year warranty

Features:

-1 year warranty

-Mates with OE Air Lines

-Designed for Comfort Suspension

Notice:

- These air suspension bags are aftermarket ones. They will replace the original rear air springs.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help

Suspensionclub currently provides a one (1) year warranty from the purchase date on all Suspensionclub products.

What is not covered under warranty?

• Misuse, lack of care, mishandling, accidents, abuse or other abnormal use
• Damage due to improper/unauthorized repairs, modified or altered product
• Non-Suspensionclub products (counterfeits)
• Damage to devices while using Suspensionclub products
• Wear and tear items such as bearings, bushings, gaskets and ball joints.

What does the warranty cover?

• Products that have a manufactures defect.

Limitations

Suspensionclub will not be liable for any indirect, incidental, or punitive damages arising from the use of any Suspensionclub product. The Suspensionclub Limited Warranty does not, in any situation, cover the repair or replacement of property, including but not limited to, electronic devices and/or other personal property.

• No instruction included
• Professional installation & alignment suggested
• Height adjustable on the front and rear axles (threaded strut housings)
• Without homologation certificate
• Easy installation with the right tools
• If you have any questions, please free to contact us for whatever we can help with.
